Description

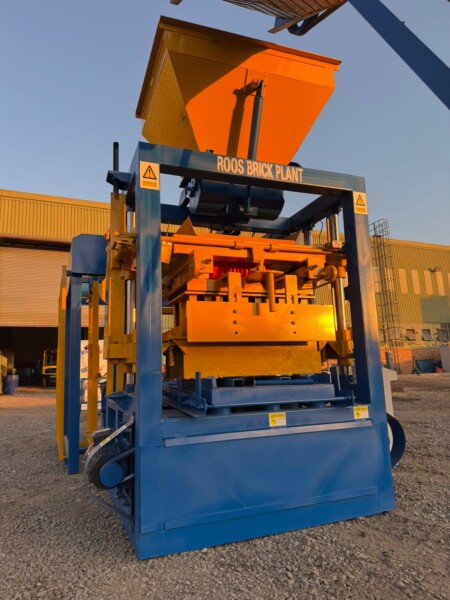

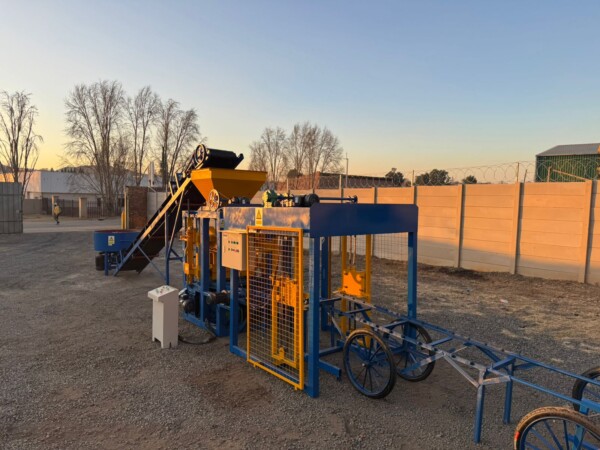

Block making machine QT 4-24: R297 020
It is used for pressing the material into different type blocks
Dimension of host machine:1850x11880x2240mm
Host machine power: 22KW
Vibration force: 35.5KN
Molding period: 20-24S
Pallet size:850x550x25mm
Weight 1330Kg

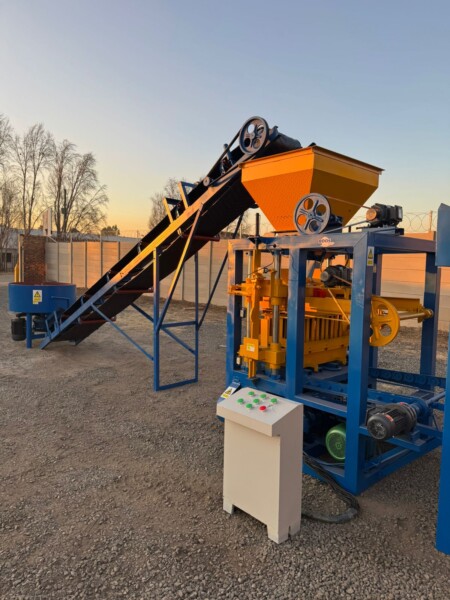

Belt conveyer machine: R52000
It is used for transport the base material from mixer to block Forming machine.
Length :6m

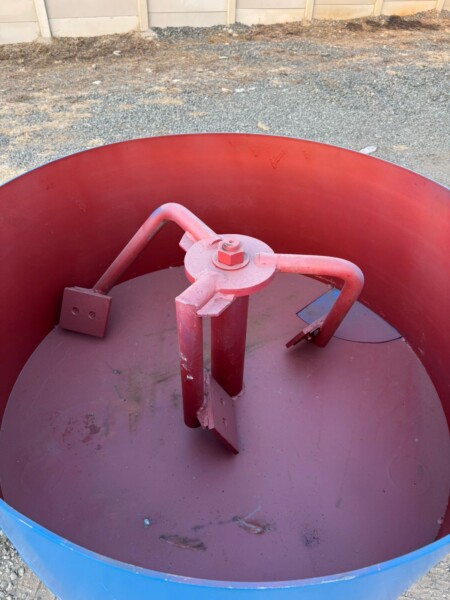

Concrete mixer machine: R66000
Mixing color material
charge volume(L):0.56M3
discharge volume(L):0.35M3
capacity(m3/h) ≥4
Diameter:1200mm
power:7.5KW
Heavy duty Block trolley: R4220
Optional extra
Extra mold: R47 550 each
Stock bricks 18450 per shift (2230X110X70MM)
Cinder blocks 2880 per shift (400X250X200MM)
Small bricks 24000 per shift (200X100X60MM)
Paving bricks 7000 per shift (200X163X60MM)
Automatic pallet stacker: R79500
Total: R419240.00 EXCLUDING OPTIONAL EXTRAS
